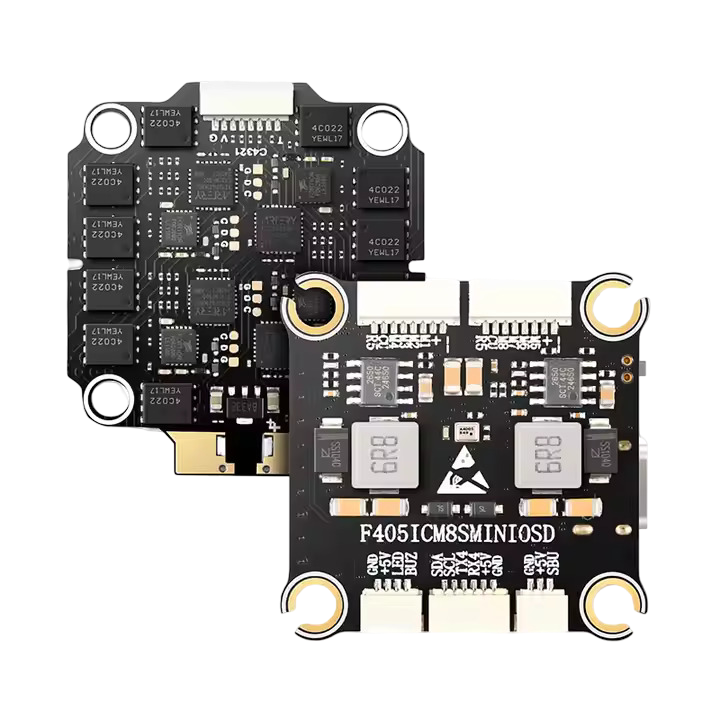

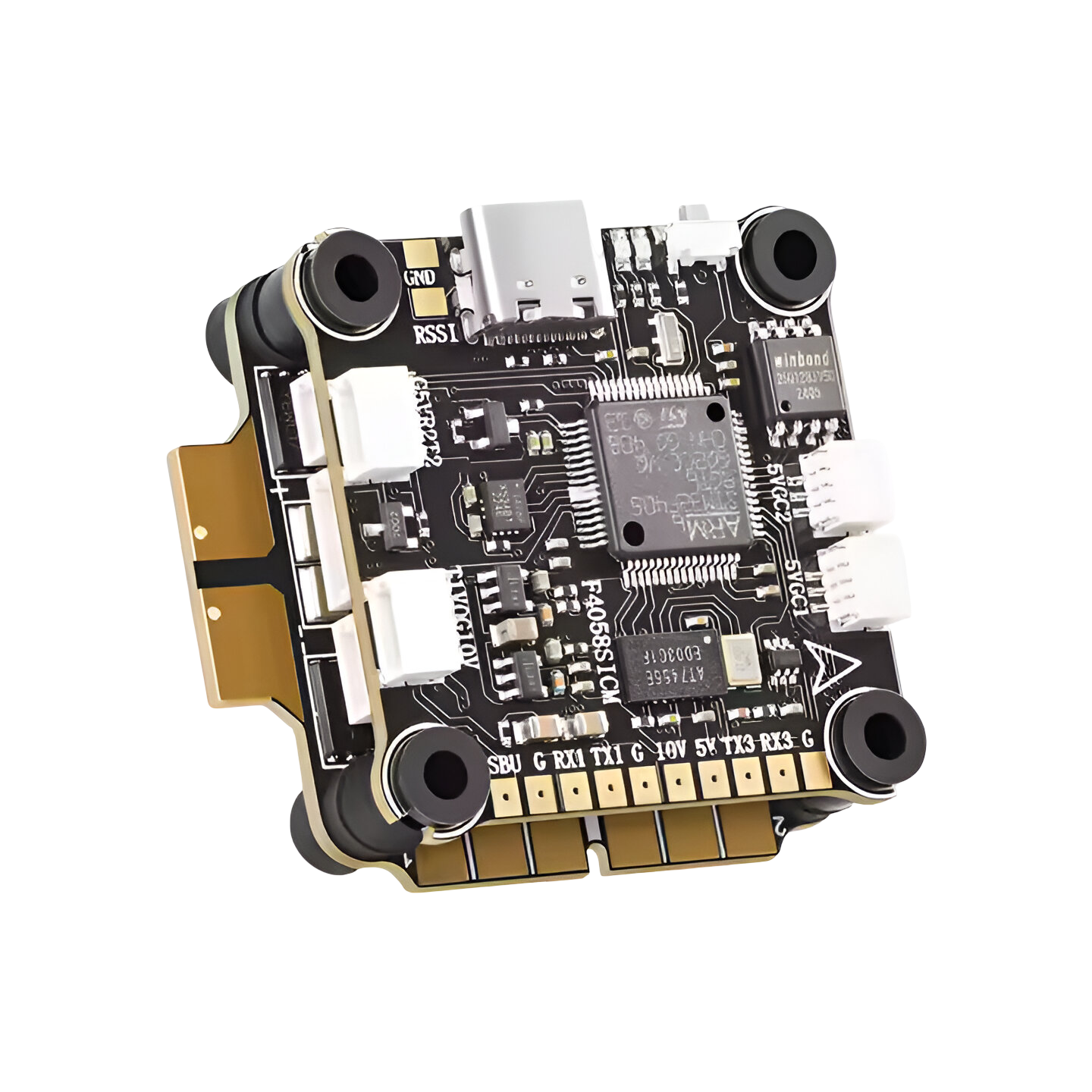

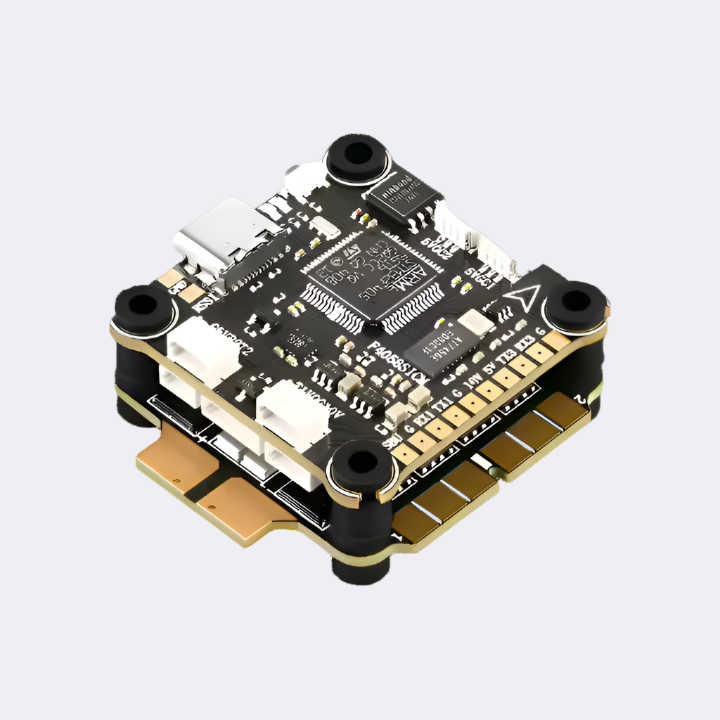

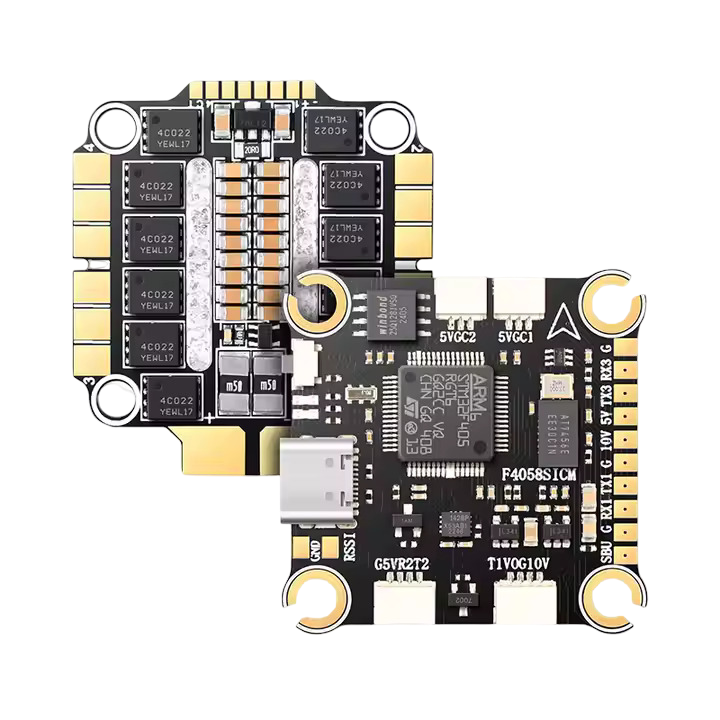

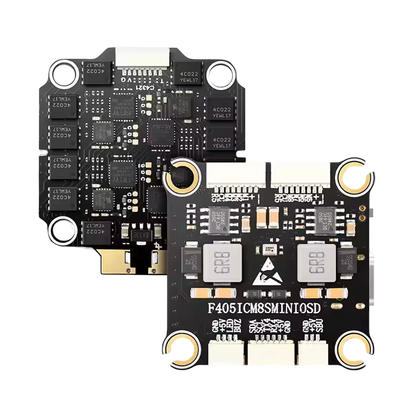

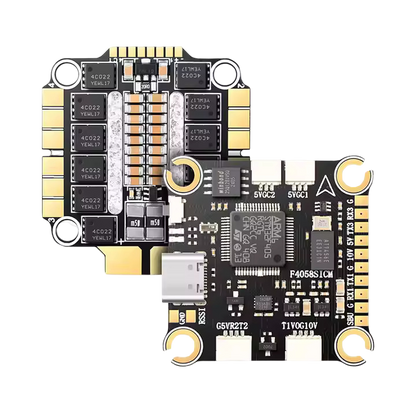

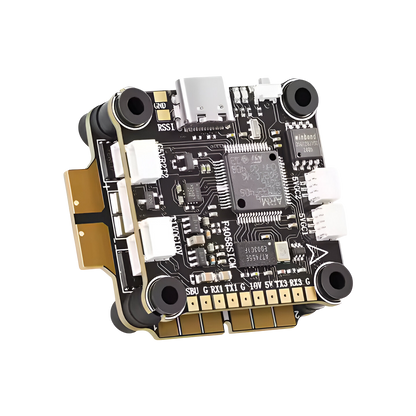

F4 V4 Stack - F408 V4 FC + ES60A 4-in-1 ESC - 30x30

$109.99 USD

Sale Sold out

Model	FT-4060A
Master	STM32F405
Gyroscope	ICM42688-P
Barometer	SPL06
OSD	AT7456E
Black Box	Onboard 16M
Bluetooth Parameter Adjustment	Not Supported
Camera Dual Switch	Supported
DJI Air Interface	Not Supported
USB Port	Type-C
Input Voltage	3-6S Lithium Battery
BEC Output	5V Maximum Output 3A, 9V Maximum Output 2A
Number of Serial Ports	5 Pcs
Continuous Current	60A*4
Peak Current	65A (10 Seconds)
ESC Feedback	Supported
Current Sensor Reference Value	270
ESC Protocol	DShot150/300/600
Mounting Hole Distance	30.5x30.5mm
Dimensions	44.5×40.5mm
Weight	20.5g
Accessories List	FC405-8S-CGM Flight Controller * 1 ESCAM60A-4IN1M ESC * 1 M330 Hexagon Socket Screws 4 M3 Nylon Nuts * 4 M3 Shock Absorber Balls * 8 8Pin Co-Directional ESC Cable * 2 3Pin Camera Cable * 1 4Pin Receiver Cable * 1 6Pin GPS Cable * 1 4Pin Image Transmission Cable * 1 35V 1000uf Capacitor * 1 XT60 Connector (male) * 1 12Awg Power Cable (10cm) * 2
