Aleksi Aero

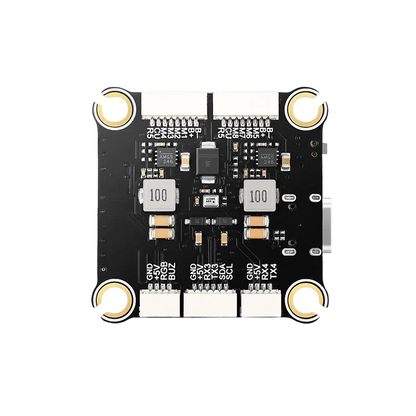

F408 V4 Flight Controller

$59.99 USD

Sale Sold out

MCU	STM32F405
Gyro	ICM42688-P
Barometer	SPL06
OSD	AT7456E
Black Box	16M onboard
Bluetooth Tuning	Not Supported
Dual Camera Switching	Supported
DJI Sky Port Insertion	Not Supported
USB Port	Type-C
Input Voltage	3S–8S LiPo battery
BEC Output	5V max output 3A, 10V max output 2A
UART	5 sets • UART1: VTX data settings • UART2: Receiver • UART3: Customized • UART4: GPS • UART5: ESC telemetry
ESC Signal Outputs	8
I2C	Included (SDA & SCL pads for compass)
LED Pads	Included (WS2812 LED control)
Buzzer Pads	Included
BOOT Button	Included
Firmware	Betaflight
Mounting	30.5 x 30.5 mm
Dimensions	37 × 37 mm
Weight	7g
